Dettagli
| VERSIONI | ||
|

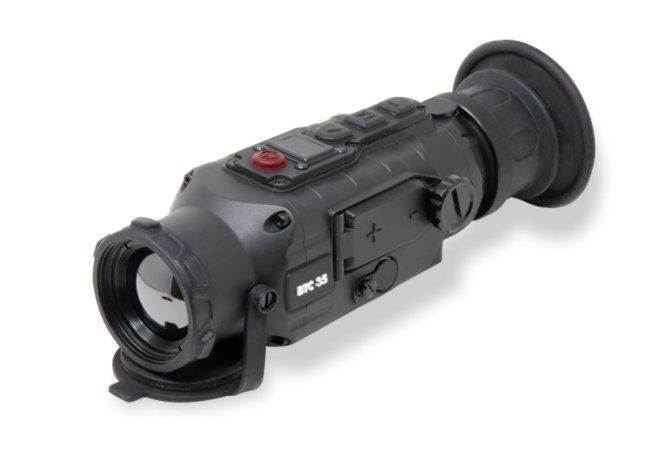

BTC 35 |

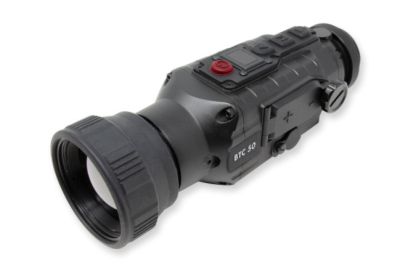

BTC 50 | |
| DETECTOR | ||
| MAGNIFICATION |
1x |
|
| RESOLUTION |
400x300@17µm |
|
| SPECTRAL RANGE |
8µm ~ 14µm |
|
| NETD |
≤50mk@25°C/F1.0 |
|
| FOCUS LENS | ||
|
FOCAL LENGTH |
35mm F1.2 | 50mm F1.2 |
|
FOCUSING |
Manual focus | |
|
FOV |
10.6°x8.0° | 7.5°x5.6° |
| IMAGE PROCESSING | ||
|
FRAME RATE |
50Hz ( PAL ) / 60Hz (NSTC) | |
|
DIGITAL ZOOM |
2x , 4x | |
|
AUTO TRACKING |
Hotspot track | |
|
CALIBRATION |
Automatic calibration / Manual calibration (shutter) / Manual scene compensation | |
|
COLOR PALETTES |
Black hot, white hot, red hot, green hot | |
|
CONTRAST/BRIGHTNESS |
Adjustable | |
| POWER SYSTEMS | ||
|
BATTERY |
CR123Ax2/ICR16340x2 | |
|
CHARGING |
On External charger | |
|
WORKING TIME |
Continuous Operating over 3 hours @25°C | |
| INTERFACE | ||
|
4-PIN LEMO INTERFACE |
Analog&video output | |
| DISPLAY SYSTEM | ||
|
OLED |
Colorful 0.39 inch OLED screen 1024x768 | |
|
PUPIL DISTANCE |
10mm | |
|
PUPIL CALIBER |
20mm | |
|
VIDEO FORMAT |
PAL/NTSC | |
|
DIGITAL ZOOM |
1 | |
|
VIEW FINDER |
Monocular display(x2) ±5 adjustable diopter | |
| ENVIRONMENT PARAMETER | ||
|
OPERATING TEMPERATURE |
-30°C - 50°C | |
|
STORAGE TEMPERATURE |
-45°C - 70°C | |
|
HUMIDITY |
Working and storage 10% ~ 95%, Non condensing | |
|
IMPACT |
500G/1ms | |
|
IP LEVEL |
IP67 | |
|
CERTIFICATE |
RoHS Certificate/CE Certificate/FCC Certificate | |
| PHYSICAL CHARACTERISTICS | ||
|
WEIGHT |
≤400g | ≤450g |
|
SIZE |
150×52×57mm | 178×58×62mm |
| PACKAGE | ||
|
STANDARD |
Thermal infrared imager/User manual/Blinder/Warranty | |
|
OPTIONAL
|
Adapter ring / External eyepiece / CR123Ax2 (unrechargeable) battery / ICR16340x2 (rechargeable) battery / Charger / Bluetooth remote controller / Lemo video cable / Picatinny rail | |
| Cover ring adapter A: Compatible with 38/40/42/44/46mm Cover ring adapter B: Compatible with 48/50/52/54mm Cover ring adapter C: Compatible with 56/58/60/62/64 mm |
||
